Experience professional-grade visuals with our 4K PTZ camera, featuring 4K@30fps crystal-clear resolution and a 1/1.8" Sony CMOS sensor. Capture every detail in stunning clarity, from vibrant colors to low-light scenes, with fluid motion and minimal noise. Perfect for video conferences, remote education, and live streaming.

Monocular technology automatically follows speakers, keeping them centered in the frame without manual adjustment. Perfect for dynamic meetings with multiple

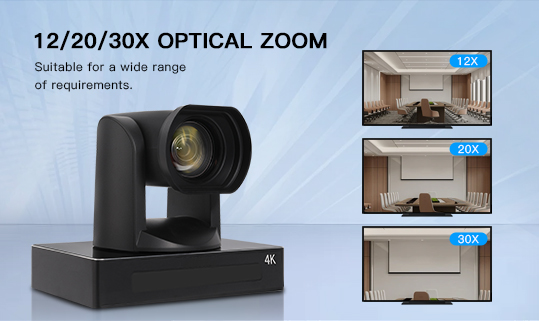

12/20/30X optical zoom (82.5° wide-angle to 7.8° tele) plus 12X digital zoom for versatile framing.
Ultra-low light sensitivity ([email protected] color) with 2D/3D DNR for clear footage in dim lighting.

HDMI 2.0: Supports 4KP60/50/30/25, 1080P60, and lower formats.
USB 3.0: 4KP60 video with UVC1.1 compatibility for plug-and-play on PCs.
3G-SDI: 1080P60 output for professional broadcast setups.
Network: 4KP60 streaming with H.265/H.264/MJPEG encoding and NDI|HX2® support (optional).

Compatible with Zoom, Teams, Webex...

3 Mounting Options: Desktop, ceiling, or wall-mounted to fit any conference room setup which makes this model suitable for various projects and events such as video conferencing, LIve-streaming, education,church, tele-medicing...

| Camera | ||
| Model No. | WS-PTZ50 | |
| Signal System | 3840×2160P60/50/30/25,1080P60/50/30/25, 720P60/50 | |
| Sensor | 1/1.8-inch high-quality CMOS sensor, 8.51 MP | |
| Scanning Mode | Progressive | |
| Minimum Illumination | Supports ultra-low illumination: [email protected] (color) | |
| Shutter | 1/30s ~ 1/10000s | |
| White Balance | Indoor/Outdoor/Auto/Manual | |
| BLC | Support | |
| DNR | 2D&3D DNR | |
| SNR | ≥52dB | |
| Optical Zoom | 12X | |
| Digital Zoom | 12X | |
| Field of view | 82.5°(wide)~7.8°(tele) | |
| Focal Length | F1.6~F3.5,f=3.4~40mm; | |
| Horizontal rotation range | ±170º | |
| Vertical rotation range | -30° ~ +90° | |
| Horizontal rotation speed range | 1 º/s ~ 100 º/s | |
| Vertical rotation speed range | 1 º/s ~ 60 º/s | |
| Horizontal and vertical flip | Supports | |
| Number of preset positions | 255 | |
| Preset position accuracy | ±0.1° | |
| USB interface | ||
| Video compression | YUV/H.264/ MJPEG | |
| Resolution and frame rate | H.264:( 3840X2160,1920×1080,1280×720,800*600,640*480,704*576,320*240) 25/30fps | |
| MJPEG:(3840X2160,1920×1080,1280×720,800*600,640*480,704*576,320*240) 25/30fps | ||
| YUV: (1920×1080,1280×720) 25/30fps | ||
| Protocol | UVC1.1 UAC1.0 | |
| Control | Supports zoom, PTZ control, adjustable brightness, contrast, hue, saturation, sharpness, exposure, focus, and parameters | |
| USB upgrade | Supports USB upgrade | |
| Input/Output Interfaces | ||
| HD video interfaces | HDMI2.0 | Video: 4KP60/50/30/25, 1080P60/50/30/25, 1080i60/50, 720P60/50… |
| 3G-SDI | Video: 1080P60/50/30/25, 720P60/50 | |
| USB3.0 | Video: 4KP60/50/30/25,1080P60/50/30/25, 720P60/50… | |
| Network Port | Video: 4KP60/50/30/25, 1080P30/25, 720P30/25 | |
| Encoding:H.265/H.264/MJPEG,Network protocols: IPv4, TCP, UDP, HTTP,NTP,DNS, DHCP,ARP, RTSP, RTP,RTCP, RTMP,NDI(optional),ONVIF,VISCA OVER IP, PoE(optional): 802.3af | ||
| Communication Interfaces | 1*, RS-232 IN, Maximum distance: 30 meters, VISCA/Pelco-D/Pelco-P protocols | |
| 1*, RS-422, Maximum distance: 1200 meters, VISCA/Pelco-D/Pelco-P protocols | ||
| Audio Interfaces | LINE IN x1 | |
| NDI License(Optional) | NDI| HX2® Authorized | |
| Power Interface | JEITA Type(DC IN 12V)HEC3800; PoE(optional) | |
| General Specifications | ||
| Input Voltage | AC110V-AC220V to DC12V/3A | |
| Input Current | DC12V(DC11.5 – DC12.5V) | |
| Operating Temperature | 0℃ to +45℃ | |
| Storage Temperature | -10℃ to +60℃ | |
| Power Consumption | 24W(maximum) | |
| Dimensions | Refer to the “Installation Dimensions” diagram | |
| Weight (Net Weight) | 3.5KG(NET:2.5 KG) | |
